Allstar Reusable Insulin Delivery Device 1

Allstar Reusable Insulin Delivery Device is used for the subcutaneous injection of insulin in individuals with diabetes. This reusable pen is compatible with Sanofi's 3ml insulin cartridges and features a sleek design for discreet use. It offers precise dosing and is designed for ease of use.

• Type: Reusable insulin injection pen.

• Compatibility: Sanofi 3ml insulin cartridges (U-100, 300 units).

• Needle compatibility: Becton Dickinson and Owen Mumford needles.

• Dose increments: Precise dosing with adjustable units.

• Material: Durable, lightweight plastic with sleek design.

• Storage temperature: Store between 5°C and 30°C without refrigeration when no cartridge is inserted.

• Usage duration: Use for a maximum of 3 years after first use.

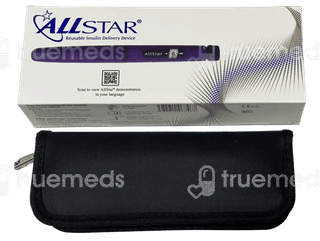

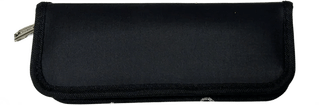

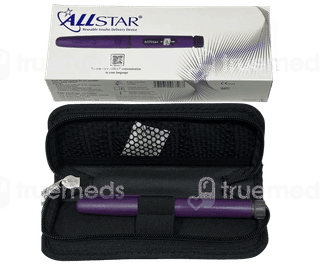

• Included in pack: Reusable insulin pen, carry case, instruction manual, warranty card.

• Magnification Window: Clear dose window for easy reading of insulin dose.

• Dose Indicators: Dose arrows present on both sides for accurate dose setting.

• Cartridge Lock: Bayonet cartridge lock ensures secure cartridge placement.

• Dialling Distance: Short dialling distance for quick and easy dose selection.

• Pen Cap: Protects the needle and cartridge; keeps the device clean and safe.

• Insulin Scale: Shows how much insulin remains inside the cartridge.

• Plunger: Pushes insulin from the cartridge into the pen for delivery.

• Pen Body: Main part of the pen that houses internal mechanisms and the dose system.

• Dose Button: Pressed to inject the insulin dose into the body.

• For Subcutaneous Injection of Insulin: Allstar Reusable Insulin Delivery Device is designed to deliver insulin just under the skin, which is the recommended method for effective absorption and blood sugar management in diabetic patients.

• For Daily Insulin Injections: It is suitable for patients requiring regular insulin doses, whether they have type 1 or type 2 diabetes, helping them manage their condition effectively.

• For Precise Dosing: The pen allows users to set accurate insulin doses according to their prescribed requirements, helping maintain stable blood glucose levels.

• For Convenient and Discreet Delivery: Its sleek, compact design makes it easy to carry and use discreetly anywhere, promoting better adherence to insulin therapy.

Insert a New Cartridge:

• Pull off the pen cap.
• Unscrew the cartridge holder from the pen body.
• Remove the old cartridge (if present).
• Check the label of the new insulin cartridge.
• Insert the cartridge (narrow end first).
• Align the cartridge holder with the pen body and push straight.
• Screw the cartridge holder firmly onto the pen body.
• Check alignment marks to ensure proper fitting.

Check Your Insulin:

• Pull off the pen cap.
• Check the cartridge label for insulin type and expiry date.
• Ensure the insulin is not expired, cloudy (if clear insulin), or damaged.
• For suspension insulins (like Lantus, Apidra): do not use if cloudy or contains particles.
• If using multiple injector pens, confirm correct medicine.

Attach a Needle:

• Take a new sterile needle and remove the protective seal.
• Keep the needle straight and screw it onto the pen (don’t overtighten).
• Pull off the outer needle cap (keep for later).
• Pull off the inner needle cap and discard.

Do a Safety Test:

• Select 2 units by turning the dose button.
• Press the dose button all the way in.
• Insulin should come out of the needle tip.
• If no insulin appears, repeat up to 3 times.
• If still blocked, change the needle and repeat.

Select the Dose:

• Ensure a needle is attached and the pen is set to "0".
• Turn the dose button until the dose pointer matches your prescribed dose.
• Check the dose window for accuracy (even numbers shown as lines, odd as numbers).

Inject the Dose:

• Choose an injection site (abdomen, thigh, or upper arm).
• Clean the area (if needed).
• Push the needle into your skin straight, not at an angle.
• Press the dose button all the way down.
• Keep holding the button in and count slowly to 10 before removing the needle.

Remove the Needle:

• Grip the widest part of the outer needle cap and carefully guide it onto the needle.
• Squeeze the cap to hold the needle firmly, then unscrew it from the pen.
• Dispose of the needle safely in a puncture-resistant container.
• Replace pen cap after use.
• Store your insulin pen in the refrigerator if required.

• Read the label carefully before use.
• Keep out of the reach of children.
• Store in a cool, dry place away from direct sunlight and heat.
• Keep your AllStar and insulin cartridges out of sight and reach of children.
• Your AllStar should be stored with the insulin cartridge inserted.
  • Do not store AllStar with a needle attached.
  • Store your pen with the pen cap on.
  • Do not store AllStar in the refrigerator.
  • Do not freeze.
• Depending on the insulin inserted, keep AllStar at room temperature either below 25°C (77°F) or 30°C (86°F).
• Please check the insulin leaflet for instructions on how to store AllStar with an insulin cartridge inserted in the pen.
• Without a cartridge, AllStar can be stored between 5°C (41°F) and 30°C (86°F).
• Discontinue use and consult your physician if you experience any side effects.

How to Care for Your Pen:

• Do not drop your pen or knock it against hard surfaces.
• If you think your pen may be damaged, do not try to repair it. If unsure whether AllStar® is broken or damaged, contact your healthcare provider.
• You can clean the outside of your pen by wiping it with a damp cloth.
• Do not soak, wash, or lubricate your pen – this may damage it.
